10.1 inch Touch Panel PC featuring multi capacitive touch screen and built in RFID NFC reader for interactive kiosk and attendance machine solutions

Menşe yeri	Çin
Marka adı	ITD/OEM
Sertifika	CE, FCC, RoHS
Model numarası	ITD101PPCT5KXX-RFID/NFC
Min sipariş miktarı	1 adet
Fiyat	TBA
Ambalaj bilgileri	1-5 adet/CTN, Güvenli, Firma, uluslararası nakliyeye uygun
Teslim süresi	12-15 iş günü
Ödeme koşulları	T/T
Yetenek temini	10000 adet/ay

Ürün ayrıntıları

Panel Boyutu	10,1"	yeniden düzenleme	1280*800
Parlaklık	350 cd/㎡(1000 cd/㎡isteğe bağlı)	Görüş Açısı	75/75/75/75
İşlemci	ARM,Intel J900,J6412,J4125,i3,i5,i7	X86 Çözüm 1	Intel® Celeron J1900/J4125/J6412 2.0GHz
X86 çözümü 2	Intel® Core i3/i5/i7 (4. ~ 14. nesil isteğe bağlı)	Güç Girişi	DC 12V (DC9 ~ 36V giriş, AC110 ~ 240V giriş isteğe bağlı)
Vurgulamak	10.1 inch touch panel PC , capacitive touch screen PC , RFID NFC reader panel PC

Mesaj bırakın

Ürün Açıklaması

10.1 inch Touch Panel PC featuring multi capacitive touch screen and built in RFID NFC reader for interactive kiosk and attendance machine solutions

ITD 7” multi-touch screen HMI comfort zero-bezel panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance ARM Based processor or x86 based Intel Celeron/Core CPU, RFID/NFC reader integrated and Projected Capacitive Touch (PCT or PCAP) Technology in industrial-grade LCD flat panels, with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD multi-touch panel PC specifically suited for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.

Specs:

Panel	Cell Type/Glass Surface	TFT
	Size/ Aspect Ratio	10.1”/16:10
	Active Area/ Pixel Pitch	216.96(H) ×135.6(V)mm/0.1695 × 0.1695mm
	Native Resolution/ Colors	1280×800/16.7M
	Brightness/ Contrast	350cd/㎡/800:1
	Response Time/ Viewing Angle (Typical)	25ms/85/85/85/85
	Light Source	LED Backlight with 30000Hours’Lifetime

SYSTEM

Item	ARM Solution 1	ARM Solution 2	ARM Solution 3
CPU	Octa-Core Cortex-A53 up to 1.5GHz Quad-Core Cortex-A53 1.8GHz	Quad-Core Cortex-A72 + Quad-Core Cortex-A53, Max Frequency 2.1GHz	Quad core Cortex-A76 + Quad-core Cortex-A55, Max. 2.4GHz
GPU	Mali-G52-2EE High Performance GPU	ARM Mali-G52 MC3 GPU	ARM Mali-G610 MP4 Quad Core GPU
NPU	Support up to 1.0T	Provides 3 TOPS of Computing Power and Supports INT4, INT8, INT16, FP16, BF16, and TF32 Precision Formats.	Delivers up to 6 TOPS of Computing Power and Supports Mixed-precision Operations (INT4/INT8/INT16), Enabling Network Model Conversion Based on Frameworks such as TensorFlow, MXNet, PyTorch, and Caffe.
Chipset	Rockchip RK3568/RK3288	Rockchip RK3576	Rockchip RK3588
Memory	LPDDR4X/LPDDR4 2GB standard, optional 4GB/8GB	LPDDR4X/LPDDR4 4GB standard, optional 8GB	LPDDR4X/LPDDR4 4GB standard, optional 8GB/16GB
Storage	eMMC 16G, optional 32GB/64GB/128GB	eMMC 32G Standard, optional 64GB/128GB	EMMC 32G Standard, optional64GB/128GB
Decoding Resolution	Support 1080P/H.265(4K2K)	Support 1080P/H.265(4K2K)	Support 1080P/H.265(8K4K2K)
Standard I/O	1 × HDMI Output; 1 × USB 3.0; 1 × USB 3.0 OTG 1 × TF Card Slot 1 × U-boot Key 1 × Audio Output 1 × RJ45 Port	1 × HDMI Output; 1 × USB 3.0; 1 × USB 2.0 OTG 1 × TF Card Slot 1 × U-boot Key 1 × Audio Output 1 × RJ45 Port	1 × HDMI Output; 1 × USB 3.0; 1 × USB 2.0 1 × Type-C 3.0 1 × U-boot Key, 1 × Debug 1 × Audio Output 1 × RJ45 Port
LAN	1 × 10/100/1000Mbps Ethernet	1 × 10/100/1000Mbps Ethernet	1 × 10/100/1000Mbps Ethernet
Wireless	WiFi, Bluetooth optional	WiFi, Bluetooth optional	WiFi, Bluetooth optional
OS	Android 11, Linux	Android 14, Linux	Android 12, Linux

GENERAL

Power	Input Voltage	DC 12V Input
	Operation/Power Saving	15W
Environment Considerations	Operating Temperature	-10~60℃
	Storage Temperature	-20~70℃
	Relative Humidity	10%~90% (Non-condensing)
Order Information	10.1” Zero Bezel Android Panel PC with PCAP Touch RK3568/ITD101PPCT5KE2-RFID/NFC
	10.1” Zero Bezel Android Panel PC with Tempered Glass No Touch RK3568/ITD101PPCG1KE2-RFID/NFC
	10.1” Zero Bezel Android Panel PC with PCAP Touch RK3576/ITD101PPCT5KE3-RFID/NFC
	10.1” Zero Bezel Android Panel PC with Tempered Glass No Touch RK3576/ITD101PPCG1KE3-RFID/NFC
	10.1” Zero Bezel Android Panel PC with PCAP Touch RK3588/ITD101PPCT5KE4-RFID/NFC
	10.1” Zero Bezel Android Panel PC with Tempered Glass No Touch RK3588/ITD101PPCG1KE4-RFID/NFC

Product Display

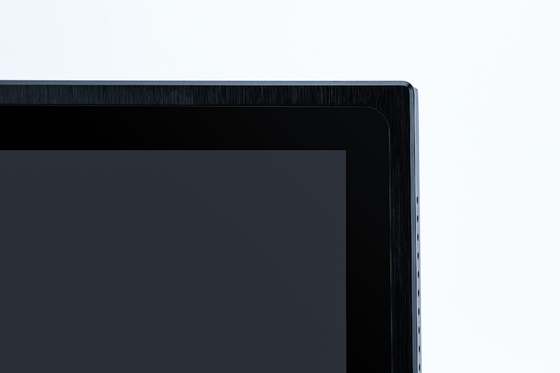

10.1 inch Touch Panel PC featuring multi capacitive touch screen and built in RFID NFC reader for interactive kiosk and attendance machine solutions 1
